Defines an aggregated type via an array and implements the ExpressionInterface. More...

#include <aggregatedActiveType.hpp>

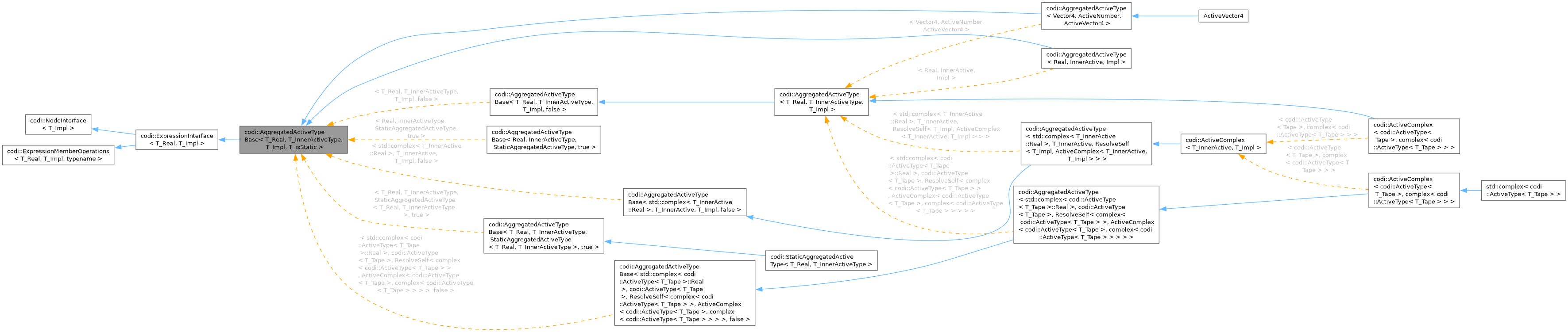

Inheritance diagram for codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >:

[legend]

Public Types
using	ADLogic = Tape
	AD logic that governs the expression. Needs to be the same for all inputs of the expression.

using	Impl = T_Impl
	See AggregatedActiveTypeBase.

using	InnerActiveType
	See AggregatedActiveTypeBase.

using	InnerIdentifier = typename Tape::Identifier
	Identifier of the underlying tape.

using	InnerReal = typename Traits::InnerType
	Inner real type of the active type.

using	Real = T_Real
	See AggregatedActiveTypeBase.

using	StoreAs = typename std::conditional<isStatic, Impl, Impl const&>::type
	Implementation of ExpressionInterface.

using	Tape = typename InnerActiveType::Tape
	The tape of the inner active type.

using	Traits = RealTraits::AggregatedTypeTraits<Real>
	The traits for the aggregated type.

Public Types inherited from codi::ExpressionInterface< T_Real, T_Impl >
using	ADLogic = char
	AD logic that governs the expression. Needs to be the same for all inputs of the expression.

using	Impl = T_Impl
	See ExpressionInterface.

using	Real = T_Real
	See ExpressionInterface.

using	StoreAs = ExpressionInterface
	Defines how this expression is stored in an expression tree.

Public Types inherited from codi::NodeInterface< T_Impl >
using	Impl = T_Impl
	See NodeInterface.

Public Types inherited from codi::ExpressionMemberOperations< T_Real, T_Impl, typename >
using	Impl = T_Impl
	See ExpressionMemberOperations.

using	Real = T_Real
	See ExpressionMemberOperations.

Public Member Functions
template<size_t argNumber>
inlineInnerReal	applyAdjoint (Real const &adjoint) const

template<size_t argNumber>
inlineReal	applyTangent (InnerReal const &tangent) const

template<size_t argNumber>
inlineInnerActiveType const &	getLink () const
	an expression.

inlineReal const	getValue () const
	Compute the primal value that is usually evaluated by the statement/expression.

	inlineAggregatedActiveTypeBase ()=default
	Constructor.

	inlineAggregatedActiveTypeBase (AggregatedActiveTypeBase const &)=default
	Constructor.

inline	~AggregatedActiveTypeBase ()=default
	Destructor.

Public Member Functions inherited from codi::ExpressionInterface< T_Real, T_Impl >
inlineImpl const &	cast () const
	Cast to the implementation.

	ExpressionInterface ()=default
	Constructor.

	ExpressionInterface (ExpressionInterface const &)=default
	Constructor.

inlineReal const	getValue () const
	Compute the primal value that is usually evaluated by the statement/expression.

template<size_t argNumber, typename Tangent>
inlineauto	applyTangent (Tangent const &tangent) const

template<size_t argNumber, typename Adjoint>
inlineauto	applyAdjoint (Adjoint const &adjoint) const

Public Member Functions inherited from codi::NodeInterface< T_Impl >
inlineImpl const &	cast () const
	Cast to the implementation.

template<size_t argNumber>
char const &	getLink () const
	an expression.

Static Public Member Functions
static inlinestd::string	getMathRep ()
	Get the math symbol of the operation. E.g. `+` for operators and `pow()` for functions.

Public Attributes
InnerActiveType	values [Elements]
	Array representation.

Static Public Attributes
static int constexpr	Elements = Traits::Elements
	The number of elements in the aggregated type.

static bool constexpr	isStatic = T_isStatic
	See AggregatedActiveTypeBase.

static size_t constexpr	LinkCount = Elements
	Implementation of NodeInterface.

static size_t constexpr	LinkCount = false
	handle the expression as a leaf node.

Protected Member Functions
inlineImpl &	cast ()
	Cast to implementation.

inlineImpl const &	cast () const
	Cast to implementation.

Protected Member Functions inherited from codi::ExpressionMemberOperations< T_Real, T_Impl, typename >
inlineImpl const &	cast () const
	Cast to implementation.

Detailed Description

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>
struct codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >

Defines an aggregated type via an array and implements the ExpressionInterface.

See AggregatedActiveType for details.

Template Parameters

T_Real	Real value of the aggregated type.
T_InnerActiveType	CoDiPack type that composes the aggregated type.
T_Impl	The final implementation of the aggregated type.
T_isStatic	If the aggregated type is created in a static context.

Member Typedef Documentation

◆ ADLogic

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>

using codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >::ADLogic = Tape

AD logic that governs the expression. Needs to be the same for all inputs of the expression.

◆ InnerActiveType

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>

using codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >::InnerActiveType

Initial value:

T_InnerActiveType

See AggregatedActiveTypeBase.

◆ StoreAs

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>

using codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >::StoreAs = typename std::conditional<isStatic, Impl, Impl const&>::type

Implementation of ExpressionInterface.

Defines how this expression is stored in an expression tree.

Member Function Documentation

◆ applyAdjoint()

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>

template<size_t argNumber>

inlineInnerReal codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >::applyAdjoint ( Real const & adjoint ) const

inline

Apply the AD reverse mode on the expression with respect to the given parameter.

This is just the local reverse mode application and not the one for the whole expression tree.

Does not need to be implemented for expressions with NodeInterface::LinkCount = 0 .

Returns: The type is the Real type of the selected argument or a compatible vector type. E.g. for Real f(complex<Real>, Real) the type with argNumber=0 is complex<Real> or Direction<complex<Real>> , with argNumber=1 it is Real or Direction<Real> .

Template Parameters

Adjoint The type of the result or a compatible vector type. E.g. Real or Direction<Real>.

Calls Traits::adjointOfConstructor.

◆ applyTangent()

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>

template<size_t argNumber>

inlineReal codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >::applyTangent ( InnerReal const & tangent ) const

inline

Apply the AD forward mode on the expression with respect to the given parameter.

This is just the local forward mode application and not the one for the whole expression tree.

Does not need to be implemented for expressions with NodeInterface::LinkCount = 0 .

Returns: The type of the result or a compatible vector type. E.g. Real or Direction<Real>.

Template Parameters

Tangent The type is the Real type of the selected argument or a compatible vector type. E.g. for Real f(complex<Real>, Real) the type with argNumber=0 is complex<Real> or Direction<complex<Real>> , with argNumber=1 it is Real or Direction<Real> .

◆ getLink()

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>

template<size_t argNumber>

inlineInnerActiveType const & codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >::getLink ( ) const

inline

an expression.

Get the argument for the specific link. Usually

◆ getMathRep()

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>

static inlinestd::string codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >::getMathRep ( )

inlinestatic

Get the math symbol of the operation. E.g. + for operators and pow() for functions.

◆ getValue()

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>

inlineReal const codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >::getValue ( ) const

inline

Compute the primal value that is usually evaluated by the statement/expression.

Member Data Documentation

◆ LinkCount

template<typename T_Real, typename T_InnerActiveType, typename T_Impl, bool T_isStatic>

size_t constexpr codi::AggregatedActiveTypeBase< T_Real, T_InnerActiveType, T_Impl, T_isStatic >::LinkCount = Elements

staticconstexpr

Implementation of NodeInterface.

handle the expression as a leaf node.

Number of links the expression has. Zero will

The documentation for this struct was generated from the following file:

include/codi/expressions/aggregate/aggregatedActiveType.hpp
